NSVF5501SKT3G

In Stock: 7,983

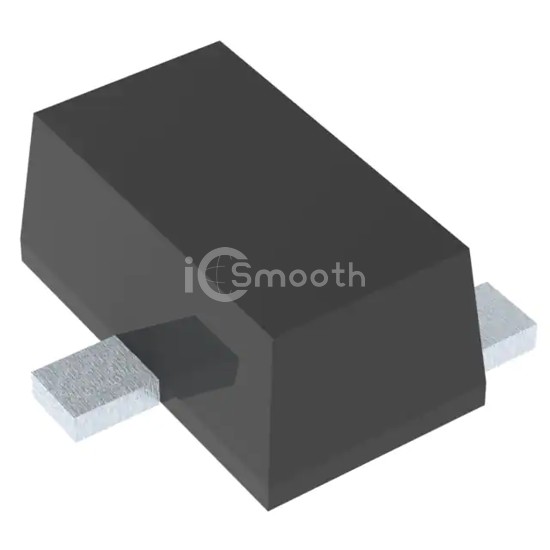

NSVF5501SKT3G - onsemi - Transistors - Bipolar (BJT) - RF
REF: NSVF5501SKT3G onsemi
NSVF5501SKT3G

onsemi

RF-TR 10V 70MA FT=5.5GHZ

NSVF5501SKT3G is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF-TR 10V 70MA FT=5.5GHZ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-623F, current - collector (ic) (max) 70mA.

Datasheet Request a Quote

In Stock: 7,983

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition5.5GHz
Noise Figure (dB Typ @ f)1.9dB @ 1GHz
Gain11dB
Power - Max250mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 5V
Current - Collector (Ic) (Max)70mA
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-623F
Supplier Device PackageSOT-623/SSFP
