NSVF4020SG4T1G

In Stock: 601

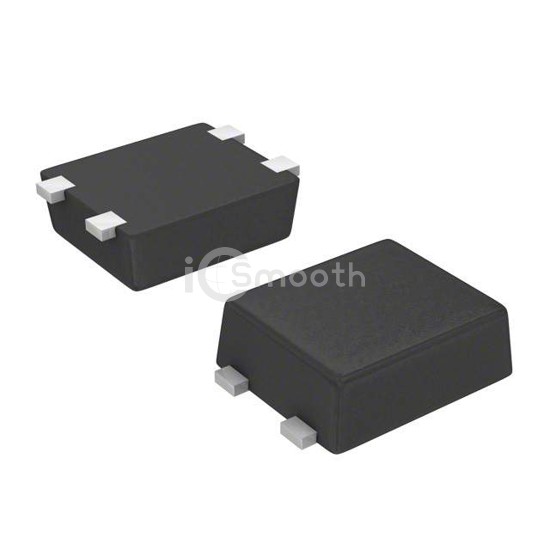

NSVF4020SG4T1G - onsemi - Transistors - Bipolar (BJT) - RF
REF: NSVF4020SG4T1G onsemi
NSVF4020SG4T1G

onsemi

RF TRANS NPN 8V 16GHZ SC82FL/MCP

NSVF4020SG4T1G is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 8V 16GHZ SC82FL/MCP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Flat Leads, current - collector (ic) (max) 150mA.

Datasheet Request a Quote

In Stock: 601

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)8V
Frequency - Transition16GHz
Noise Figure (dB Typ @ f)1.8dB @ 1GHz
Gain17.5dB
Power - Max400mW
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 50mA, 5V
Current - Collector (Ic) (Max)150mA
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Flat Leads
Supplier Device PackageSC-82FL/MCPH4
