NSVDTA143ZET1G

In Stock: 9,557

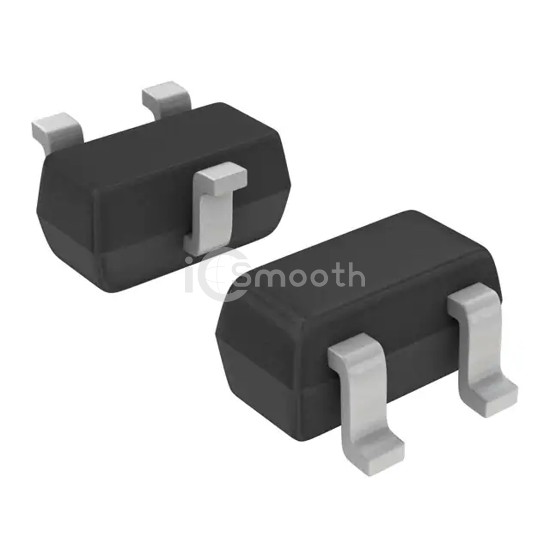

NSVDTA143ZET1G - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: NSVDTA143ZET1G onsemi
NSVDTA143ZET1G

onsemi

TRANS PNP 50V BIPOLAR SC75-3

NSVDTA143ZET1G is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS PNP 50V BIPOLAR SC75-3. Key specifications: mounting type Surface Mount, package / case SC-75, SOT-416, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 9,557

Specifications

14 parameters
Product StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseSC-75, SOT-416
Supplier Device PackageSC-75, SOT-416
