NSVDTA123EM3T5G

In Stock: 2,020

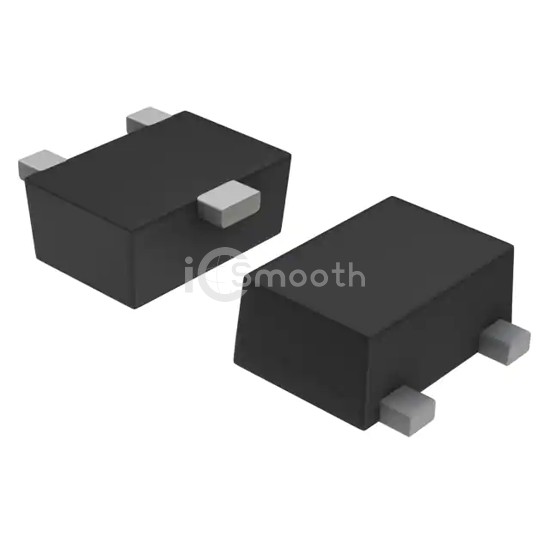

NSVDTA123EM3T5G - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: NSVDTA123EM3T5G onsemi
NSVDTA123EM3T5G

onsemi

TRANS PNP 50V 0.1A SOT723

NSVDTA123EM3T5G is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS PNP 50V 0.1A SOT723. Key specifications: mounting type Surface Mount, package / case SOT-723, current - collector (ic) (max) 100 mA, power - max 260 mW.

Datasheet Request a Quote

In Stock: 2,020

Specifications

14 parameters
Product StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce8 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max260 mW
Mounting TypeSurface Mount
Package / CaseSOT-723
Supplier Device PackageSOT-723
