NSTB1002DXV5T1

In Stock: 7,146

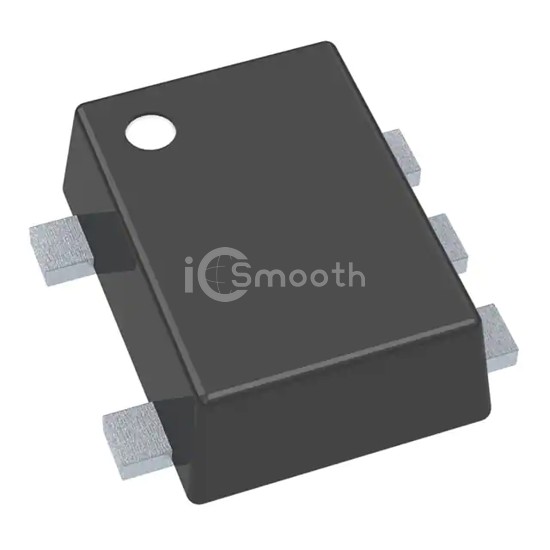

NSTB1002DXV5T1 - onsemi - Transistors - Bipolar (BJT) - Arrays, Pre-Biased
REF: NSTB1002DXV5T1 onsemi
NSTB1002DXV5T1

onsemi

TRANS NPN PREBIAS/PNP 0.5W SOT55

NSTB1002DXV5T1 is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by onsemi. TRANS NPN PREBIAS/PNP 0.5W SOT55. Key specifications: mounting type Surface Mount, package / case SOT-553, current - collector (ic) (max) 100mA, 200mA, power - max 500mW.

Request a Quote

In Stock: 7,146

Specifications

14 parameters
Product StatusObsolete
Transistor Type1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max)100mA, 200mA
Voltage - Collector Emitter Breakdown (Max)50V, 40V
Resistor - Base (R1)47kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V / 100 @ 1mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA / 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250MHz
Power - Max500mW
Mounting TypeSurface Mount
Package / CaseSOT-553
Supplier Device PackageSOT-553
