01005_TRENCH_SCHOTTKY_30V

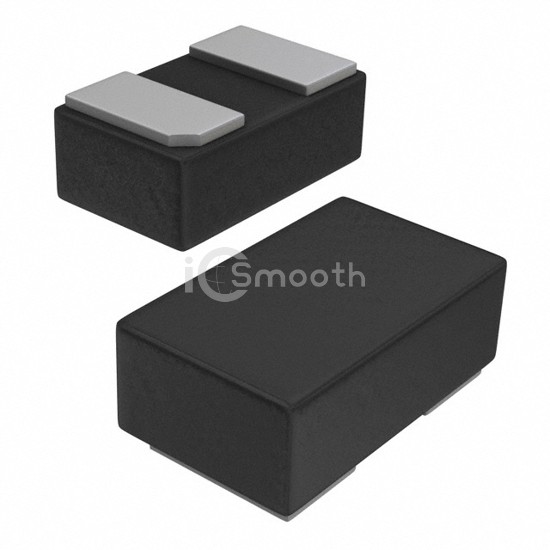

NSR05301MX4T5G is a Diodes - Rectifiers - Single manufactured by onsemi. 01005_TRENCH_SCHOTTKY_30V. Key specifications: mounting type Surface Mount, package / case 01005 (0402 Metric).
In Stock: 9,905
| Product Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 11 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
|---|---|
| Capacitance @ Vr, F | 19pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 2-X4DFN (0.45x0.24) |
| Operating Temperature - Junction | -55°C ~ 125°C |
