Name: NSP8814MUTAG
Brand: onsemi
SKU: NSP8814MUTAG
Price: 1.34 USD
Availability: InStock

REF: NSP8814MUTAG onsemi

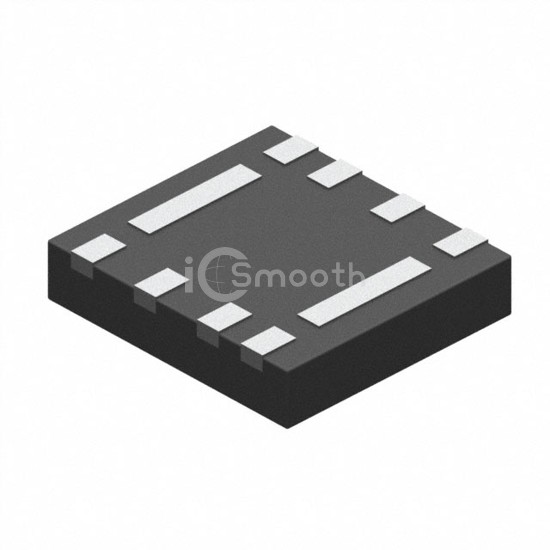

NSP8814MUTAG

TVS DIODE 3VWM 15VC 8-UDFN

NSP8814MUTAG is a TVS - Diodes manufactured by onsemi. TVS DIODE 3VWM 15VC 8-UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 8-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 580

Tiered Pricing USD

1+ $1.3400 —

10+ $0.8420 -37%

100+ $0.5570 -58%

500+ $0.4346 -68%

1,000+ $0.3952 -71% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3V (Max)
Voltage - Breakdown (Min)	3.2V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	35A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Ethernet
Capacitance @ Frequency	5pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-UDFN Exposed Pad
Supplier Device Package	8-UDFN (2.2x2)
