NSBC144WF3T5G

In Stock: 312,000
NSBC144WF3T5G - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: NSBC144WF3T5G onsemi

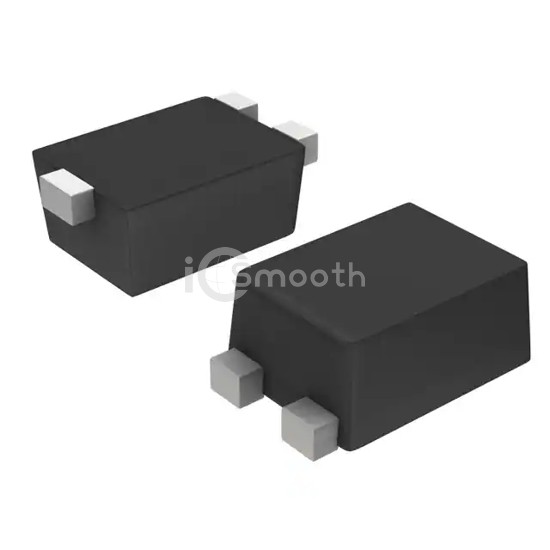

NSBC144WF3T5G

onsemi

TRANS PREBIAS NPN 50V SOT1123

NSBC144WF3T5G is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS PREBIAS NPN 50V SOT1123. Key specifications: mounting type Surface Mount, package / case SOT-1123, current - collector (ic) (max) 100 mA, power - max 254 mW.

Datasheet Request a Quote

In Stock: 312,000

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)47 kOhms
Resistor - Emitter Base (R2)22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max254 mW
Mounting TypeSurface Mount
Package / CaseSOT-1123
Supplier Device PackageSOT-1123
