NLX3G14BMX1TCG

In Stock: 63,000

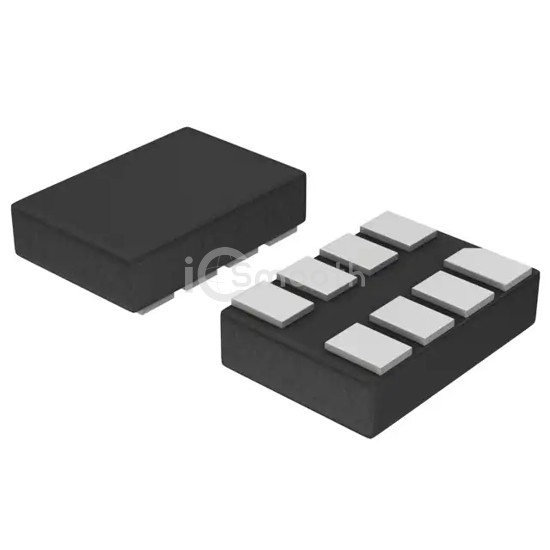

NLX3G14BMX1TCG - onsemi - Logic - Gates and Inverters
REF: NLX3G14BMX1TCG onsemi
NLX3G14BMX1TCG

onsemi

IC INVERT SCHMITT 3CH 3IN 8ULLGA

NLX3G14BMX1TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 3CH 3IN 8ULLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-XFLGA.

Datasheet Request a Quote

In Stock: 63,000

Tiered Pricing USD
3,000+ $0.1441 —
6,000+ $0.1310 -9%
9,000+ $0.1243 -14%
15,000+ $0.1168 -19%
21,000+ $0.1123 -22%
30,000+ $0.1080 -25%
75,000+ $0.1038 -28% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits3
Number of Inputs3
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.2V ~ 1.2V
Logic Level - High1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL4.9ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-ULLGA (1.6x1)
Package / Case8-XFLGA
