NLX2G14CMX1TCG

In Stock: 151,907

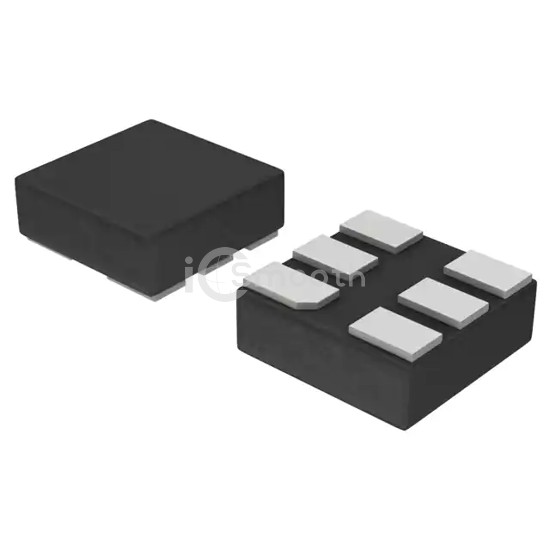

NLX2G14CMX1TCG - onsemi - Logic - Gates and Inverters
REF: NLX2G14CMX1TCG onsemi
NLX2G14CMX1TCG

onsemi

IC INVERT SCHMITT 2CH 2IN 6ULLGA

NLX2G14CMX1TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 2CH 2IN 6ULLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFLGA.

Datasheet Request a Quote

In Stock: 151,907

Tiered Pricing USD
3,000+ $0.1358 —
6,000+ $0.1232 -9%
9,000+ $0.1168 -14%
15,000+ $0.1097 -19%
21,000+ $0.1055 -22%
30,000+ $0.1014 -25%
75,000+ $0.0963 -29% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.2V ~ 1.2V
Logic Level - High1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL4.9ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-ULLGA (1x1)
Package / Case6-XFLGA
