NLV74HC273ADTR2G

In Stock: 6,199

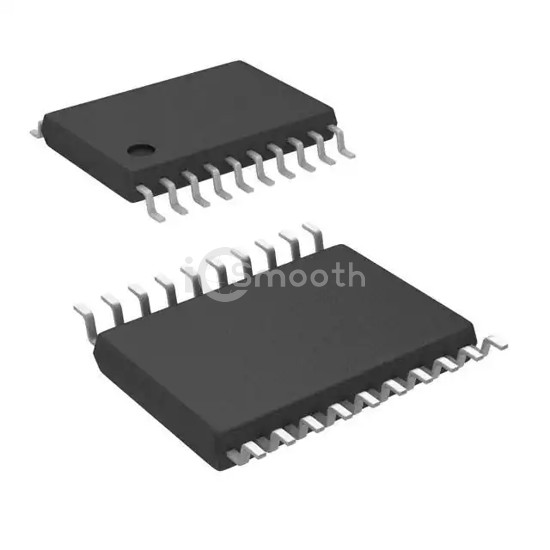

NLV74HC273ADTR2G - onsemi - Logic - Flip Flops
REF: NLV74HC273ADTR2G onsemi
NLV74HC273ADTR2G

onsemi

IC FF D-TYPE SNGL 8BIT 20TSSOP

NLV74HC273ADTR2G is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 6,199

Tiered Pricing USD
1+ $1.4400 —
10+ $0.8800 -39%
25+ $0.7348 -49%
100+ $0.5706 -60%
250+ $0.4899 -66%
500+ $0.4403 -69%
1,000+ $0.3987 -72% BEST

Specifications

17 parameters
Product StatusActive
FunctionReset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency35 MHz
Max Propagation Delay @ V, Max CL25ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low7.8mA, 7.8mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)4 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-TSSOP
Package / Case20-TSSOP (0.173", 4.40mm Width)
