NLU1G14AMX1TCG

In Stock: 6,118

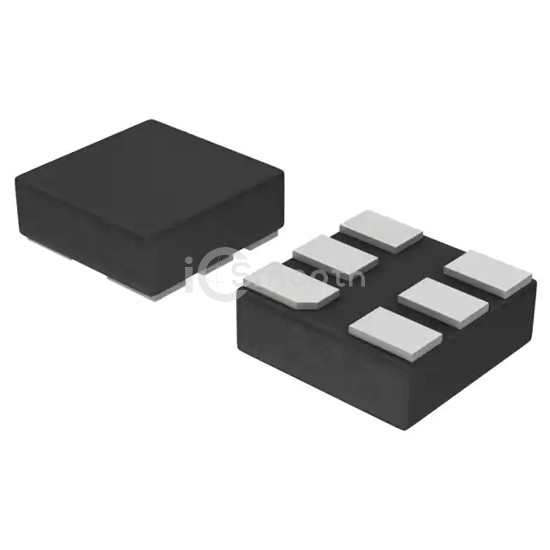

NLU1G14AMX1TCG - onsemi - Logic - Gates and Inverters
REF: NLU1G14AMX1TCG onsemi
NLU1G14AMX1TCG

onsemi

IC INVERT SCHMITT 1CH 1IN 6ULLGA

NLU1G14AMX1TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 1CH 1IN 6ULLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFLGA.

Datasheet Request a Quote

In Stock: 6,118

Tiered Pricing USD
3,000+ $0.1040 —
6,000+ $0.0939 -10%
9,000+ $0.0887 -15%
15,000+ $0.0830 -20%
21,000+ $0.0796 -23%
30,000+ $0.0763 -27%
75,000+ $0.0691 -34% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits1
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.9V ~ 1.65V
Logic Level - High2.2V ~ 3.85V
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-ULLGA (1.45x1)
Package / Case6-XFLGA
