NL27WZ14MU3TCG

In Stock: 5,383

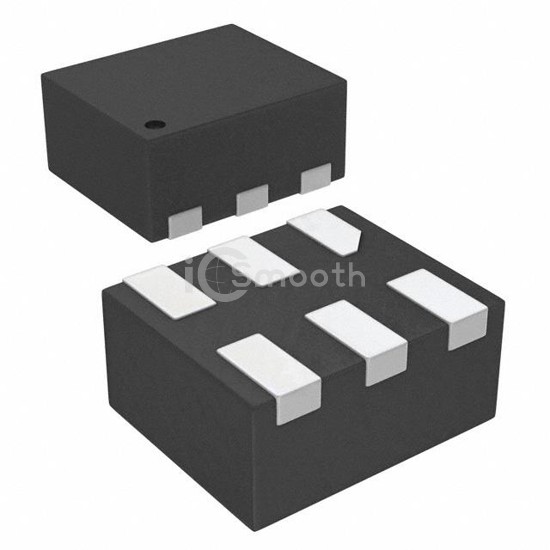

NL27WZ14MU3TCG - onsemi - Logic - Gates and Inverters
REF: NL27WZ14MU3TCG onsemi
NL27WZ14MU3TCG

onsemi

IC INVERT SCHMITT 2CH 2-IN 6UDFN

NL27WZ14MU3TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 2CH 2-IN 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 5,383

Tiered Pricing USD
3,000+ $0.1123 —
6,000+ $0.1015 -10%
9,000+ $0.0960 -14%
15,000+ $0.0899 -20%
21,000+ $0.0863 -23%
30,000+ $0.0828 -26%
75,000+ $0.0758 -33% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.5V ~ 1.9V
Logic Level - High1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL4.9ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1x1)
Package / Case6-UFDFN
