NL27WZ02MU2TCG

In Stock: 2,293

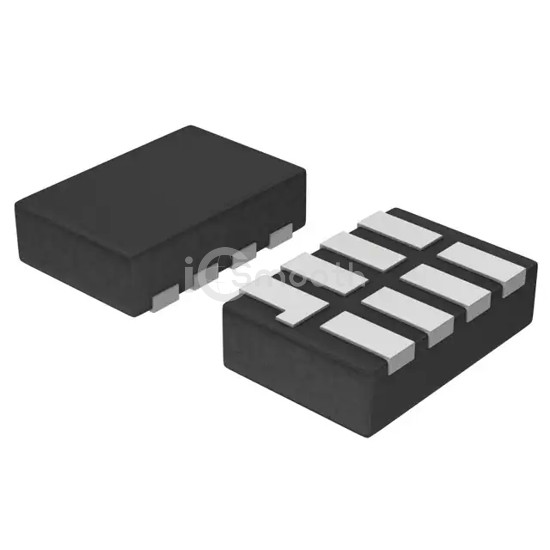

NL27WZ02MU2TCG - onsemi - Logic - Gates and Inverters
REF: NL27WZ02MU2TCG onsemi
NL27WZ02MU2TCG

onsemi

IC GATE NOR 2CH 2-INP 8UDFN

NL27WZ02MU2TCG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 2CH 2-INP 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-UFDFN.

Request a Quote

In Stock: 2,293

Tiered Pricing USD
3,000+ $0.1287 —
6,000+ $0.1167 -9%
9,000+ $0.1106 -14%
15,000+ $0.1037 -19%
21,000+ $0.0997 -23%
30,000+ $0.0958 -26%
75,000+ $0.0900 -30% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.7ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-UDFN (1.6x1)
Package / Case8-UFDFN
