NL17SG08AMUTCG

In Stock: 309,000

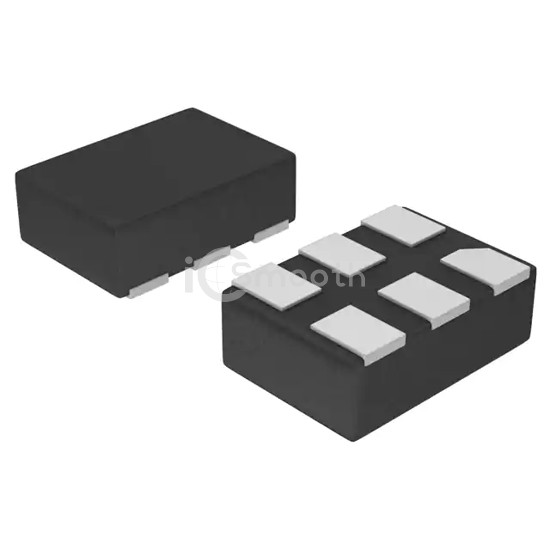

NL17SG08AMUTCG - onsemi - Logic - Gates and Inverters
REF: NL17SG08AMUTCG onsemi
NL17SG08AMUTCG

onsemi

IC GATE AND 1CH 2-INP 6UDFN

NL17SG08AMUTCG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE AND 1CH 2-INP 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 0.9V ~ 3.6V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 309,000

Tiered Pricing USD
3,000+ $0.1400 —
6,000+ $0.1271 -9%
9,000+ $0.1206 -14%
15,000+ $0.1132 -19%
21,000+ $0.1089 -22%
30,000+ $0.1047 -25%
75,000+ $0.1000 -29% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.9V ~ 3.6V
Current - Quiescent (Max)500 nA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL5.4ns @ 3.3V, 30pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.45x1)
Package / Case6-UFDFN
