NGTG15N60S1EG

In Stock: 8,578
NGTG15N60S1EG - onsemi - Transistors - IGBTs - Single
REF: NGTG15N60S1EG onsemi
NGTG15N60S1EG

onsemi

IGBT NPT 600V 30A TO220

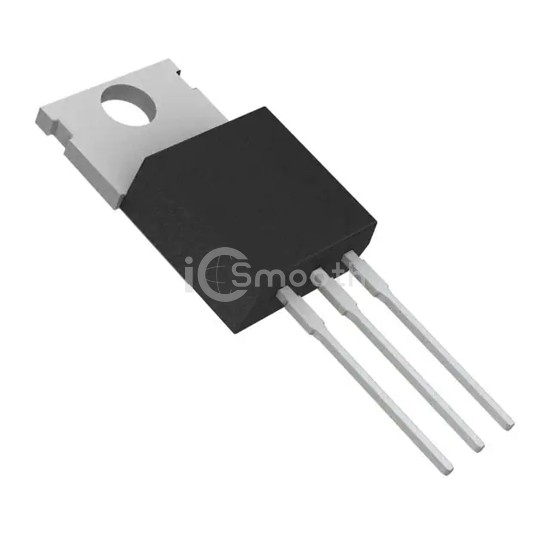

NGTG15N60S1EG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT NPT 600V 30A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 8,578

Specifications

17 parameters
Product StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 15A
Power - Max117 W
Switching Energy550µJ (on), 350µJ (off)
Input TypeStandard
Gate Charge88 nC
Td (on/off) @ 25°C65ns/170ns
Test Condition400V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
