NGTB40N120FL2WAG

In Stock: 6,306
NGTB40N120FL2WAG - onsemi - Transistors - IGBTs - Single
REF: NGTB40N120FL2WAG onsemi
NGTB40N120FL2WAG

onsemi

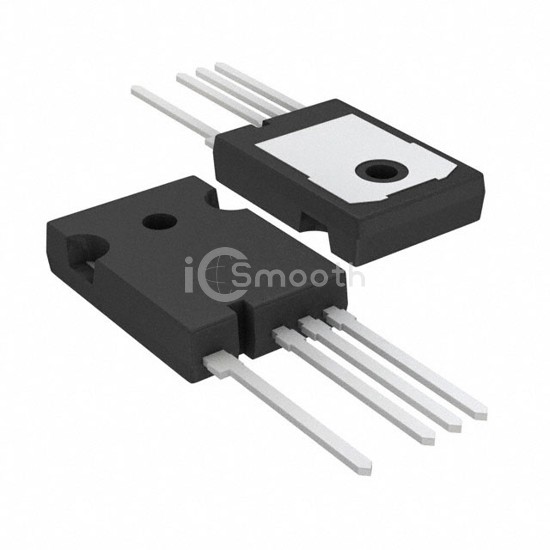

IGBT FIELD STOP 1200V 160A TO247

NGTB40N120FL2WAG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT FIELD STOP 1200V 160A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 160 A.

Datasheet Request a Quote

In Stock: 6,306

Specifications

17 parameters
Product StatusObsolete
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max536 W
Switching Energy1.7mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge313 nC
Td (on/off) @ 25°C30ns/145ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)240 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4L
