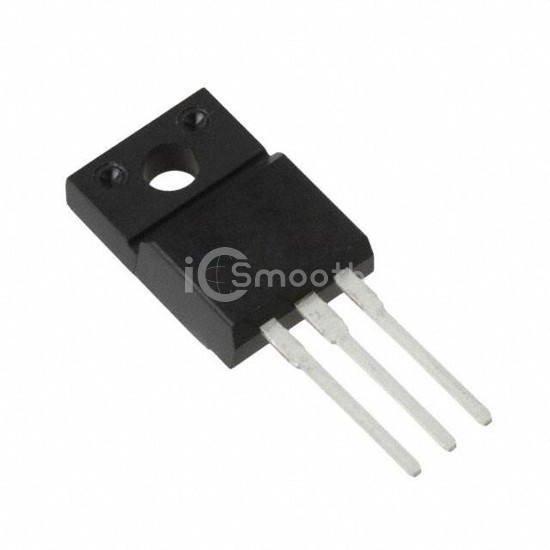

NGTB15N60R2FG - onsemi - Transistors - IGBTs - Single
REF: NGTB15N60R2FG onsemi
NGTB15N60R2FG

onsemi

IGBT 600V 24A TO220F-3FS

NGTB15N60R2FG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 24A TO220F-3FS. Key specifications: mounting type Through Hole, operating temperature 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 24 A.

Datasheet Request a Quote

In Stock: 6,588

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)24 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 15A
Power - Max54 W
Switching Energy550µJ (on), 220µJ (off)
Input TypeStandard
Gate Charge80 nC
Td (on/off) @ 25°C70ns/190ns
Test Condition300V, 15A, 30Ohm, 15V
Reverse Recovery Time (trr)95 ns
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3FS
