NGTB10N60R2DT4G

In Stock: 3,010
NGTB10N60R2DT4G - onsemi - Transistors - IGBTs - Single
REF: NGTB10N60R2DT4G onsemi
NGTB10N60R2DT4G

onsemi

IGBT 600V 20A DPAK

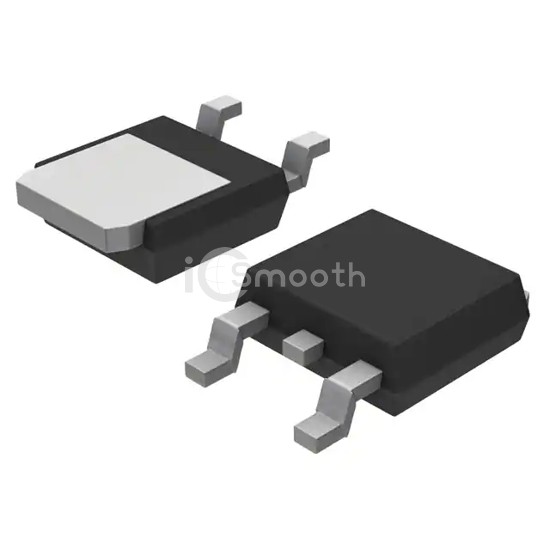

NGTB10N60R2DT4G is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 20A DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 3,010

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 10A
Power - Max72 W
Switching Energy412µJ (on), 140µJ (off)
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C48ns/120ns
Test Condition300V, 10A, 30Ohm, 15V
Reverse Recovery Time (trr)90 ns
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
