NGTB10N60FG

In Stock: 8,075
NGTB10N60FG - onsemi - Transistors - IGBTs - Single
REF: NGTB10N60FG onsemi
NGTB10N60FG

onsemi

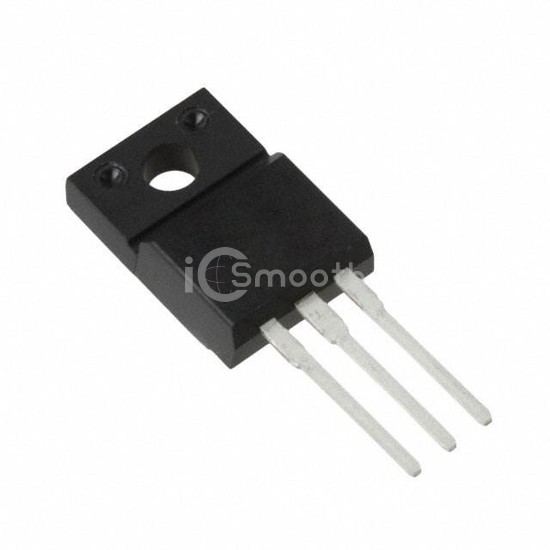

IGBT 600V 10A TO220F3

NGTB10N60FG is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 10A TO220F3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 8,075

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)72 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 10A
Power - Max40 W
Switching Energy-
Input TypeStandard
Gate Charge55 nC
Td (on/off) @ 25°C40ns/145ns
Test Condition300V, 10A, 30Ohm, 15V
Reverse Recovery Time (trr)70 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3FS
