NGTB03N60R2DT4G

In Stock: 7,638
NGTB03N60R2DT4G - onsemi - Transistors - IGBTs - Single
REF: NGTB03N60R2DT4G onsemi
NGTB03N60R2DT4G

onsemi

IGBT 9A 600V DPAK

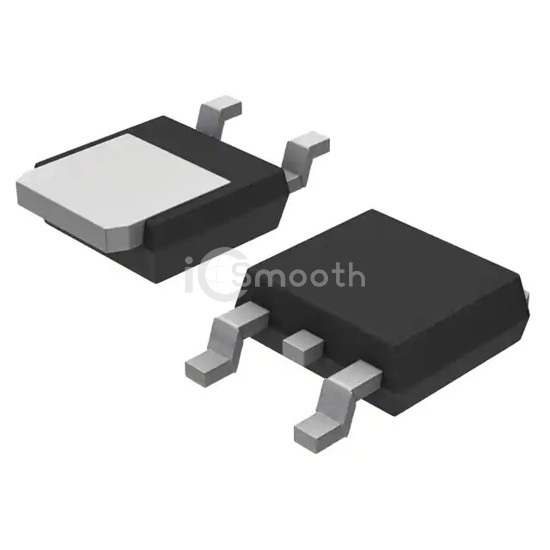

NGTB03N60R2DT4G is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 9A 600V DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 9 A.

Datasheet Request a Quote

In Stock: 7,638

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)9 A
Current - Collector Pulsed (Icm)12 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 3A
Power - Max49 W
Switching Energy50µJ (on), 27µJ (off)
Input TypeStandard
Gate Charge17 nC
Td (on/off) @ 25°C27ns/59ns
Test Condition300V, 3A, 30Ohm, 15V
Reverse Recovery Time (trr)65 ns
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
