Name: NDUL09N150CG
Brand: onsemi
SKU: NDUL09N150CG
Availability: InStock

REF: NDUL09N150CG onsemi

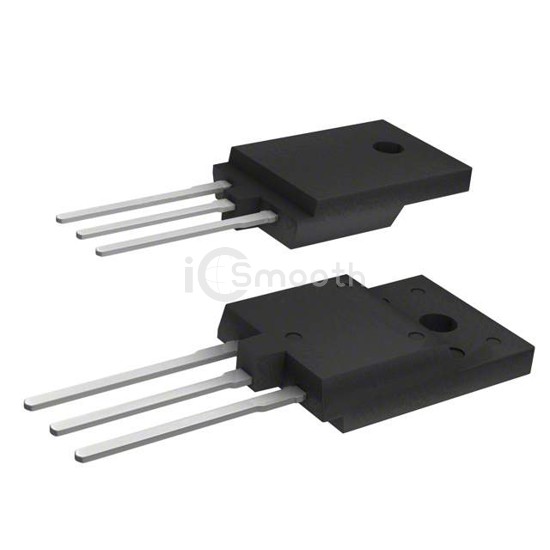

NDUL09N150CG

MOSFET N-CH 1500V 9A TO3PF-3

NDUL09N150CG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 9A TO3PF-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 9,720

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3Ohm @ 3A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	114 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2025 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 78W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PF-3
Package / Case	TO-3P-3 Full Pack
