NDTL03N150CG

In Stock: 3,754

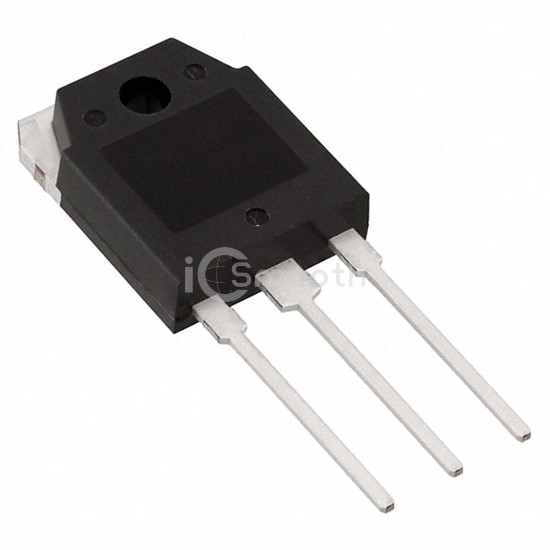

NDTL03N150CG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NDTL03N150CG onsemi
NDTL03N150CG

onsemi

MOSFET N-CH 1500V 2.5A TO3P

NDTL03N150CG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 2.5A TO3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3PL.

Datasheet Request a Quote

In Stock: 3,754

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs10.5Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs34 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds650 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 140W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3P(L)
Package / CaseTO-3PL
