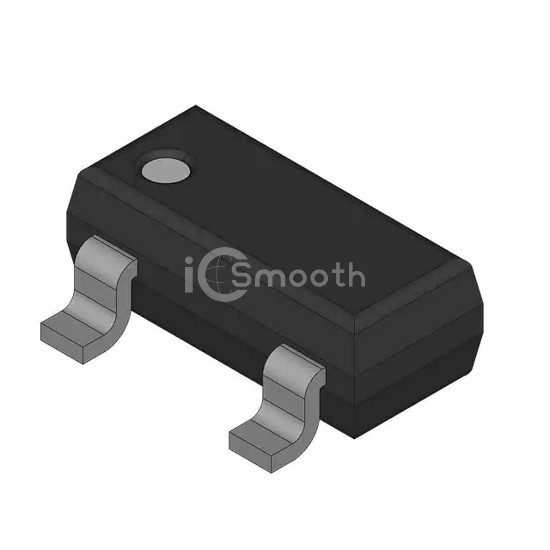

Name: NDS356AP-NB8L005A
Brand: onsemi
SKU: NDS356AP-NB8L005A
Price: 0.16 USD
Availability: InStock

REF: NDS356AP-NB8L005A onsemi

NDS356AP-NB8L005A

-30V P-CHANNEL LOGIC LEVEL ENHAN

NDS356AP-NB8L005A is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. -30V P-CHANNEL LOGIC LEVEL ENHAN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 87,533

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	200mOhm @ 1.3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.4 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	280 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
