Name: NDDP010N25AZ-1H
Brand: onsemi
SKU: NDDP010N25AZ-1H
Availability: InStock

REF: NDDP010N25AZ-1H onsemi

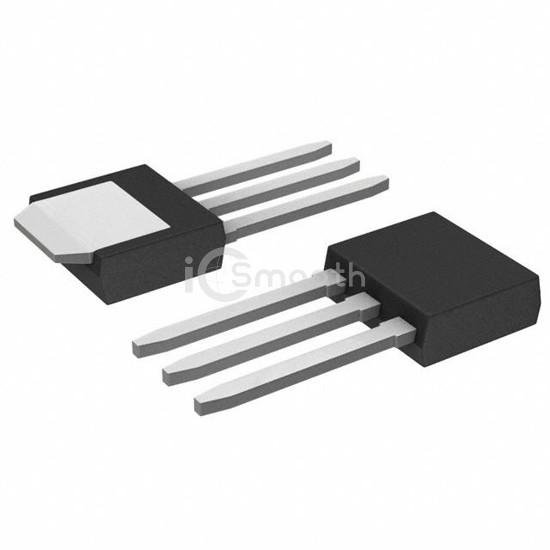

NDDP010N25AZ-1H

MOSFET N-CH 250V 10A IPAK/TP

NDDP010N25AZ-1H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 250V 10A IPAK/TP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 9,035

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	420mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	980 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK/TP
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
