Name: NDD03N80ZT4G
Brand: onsemi
SKU: NDD03N80ZT4G
Availability: InStock

REF: NDD03N80ZT4G onsemi

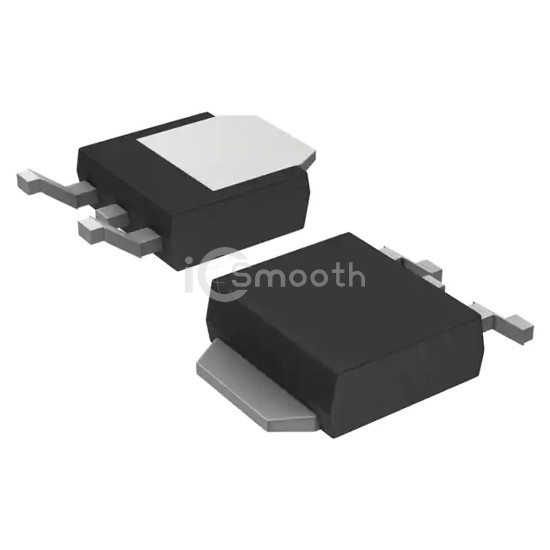

NDD03N80ZT4G

MOSFET N-CH 800V 2.9A DPAK-3

NDD03N80ZT4G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 800V 2.9A DPAK-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 6,856

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	2.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.5Ohm @ 1.2A, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	440 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
