Name: NCV8560MN500R2G
Brand: onsemi
SKU: NCV8560MN500R2G
Price: 2.09 USD
Availability: InStock

REF: NCV8560MN500R2G onsemi

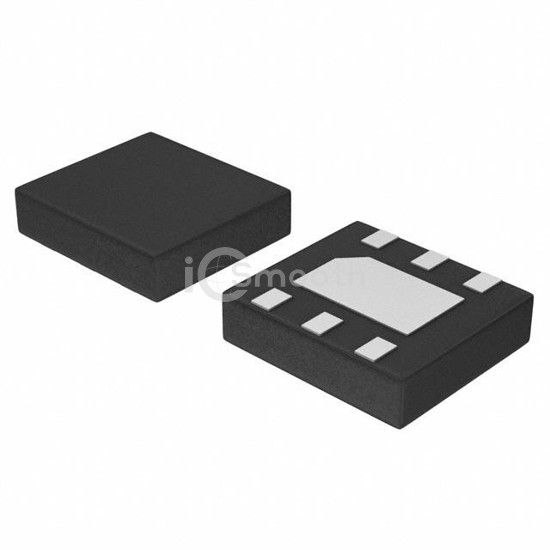

NCV8560MN500R2G

IC REG LINEAR 5V 150MA 6DFN

NCV8560MN500R2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 150MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-VDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 7,026

Tiered Pricing USD

1+ $2.0900 —

10+ $1.3030 -38%

25+ $1.0972 -48%

100+ $0.8644 -59%

250+ $0.7500 -64%

500+ $0.6796 -67%

1,000+ $0.6206 -70% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	150mA

Current - Quiescent (Iq)	175 µA
Current - Supply (Max)	-
PSRR	62dB ~ 38dB (120Hz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-DFN (3x3)
