NCV8509PDW18R2G

In Stock: 2,186

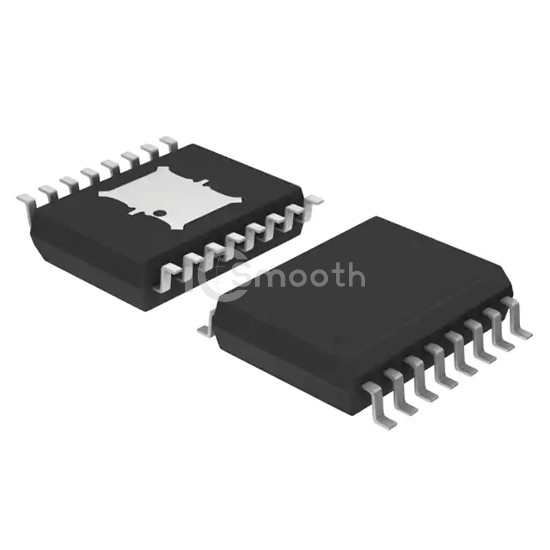

NCV8509PDW18R2G - onsemi - PMIC - Voltage Regulators - Linear
REF: NCV8509PDW18R2G onsemi
NCV8509PDW18R2G

onsemi

IC REG LINEAR 3.3V/1.8V 16SOIC

NCV8509PDW18R2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3.3V/1.8V 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 2,186

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)50V
Voltage - Output (Min/Fixed)3.3V, 1.8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.6V @ 100mA, -
Current - Output115mA, 100mA
Current - Quiescent (Iq)175 µA
Current - Supply (Max)10 mA
PSRR-
Control FeaturesReset
Protection FeaturesOver Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package16-SOIC
