Name: NCV8503PWADJR2G
Brand: onsemi
SKU: NCV8503PWADJR2G
Price: 1.98 USD
Availability: InStock

REF: NCV8503PWADJR2G onsemi

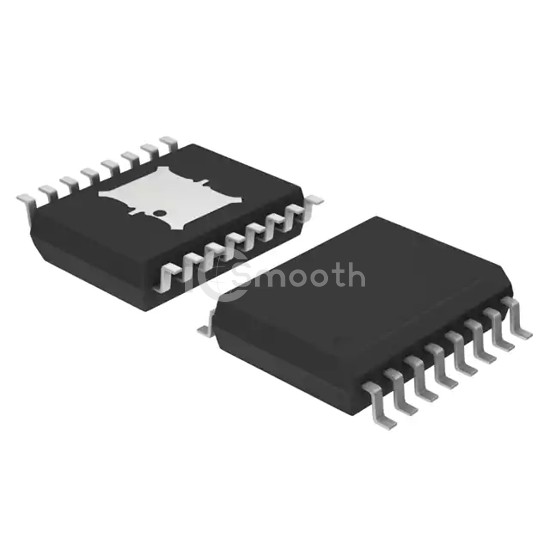

NCV8503PWADJR2G

IC REG LIN POS ADJ 400MA 16SOIC

NCV8503PWADJR2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 400MA 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 45 mA.

Datasheet Request a Quote

In Stock: 62,990

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	1.3V
Voltage - Output (Max)	44.4V
Voltage Dropout (Max)	0.6V @ 400mA
Current - Output	400mA

Current - Quiescent (Iq)	350 µA
Current - Supply (Max)	45 mA
PSRR	-
Control Features	Enable, Reset
Protection Features	Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package	16-SOIC
