Name: NCV8501PDW100R2
Brand: onsemi
SKU: NCV8501PDW100R2
Availability: InStock

REF: NCV8501PDW100R2 onsemi

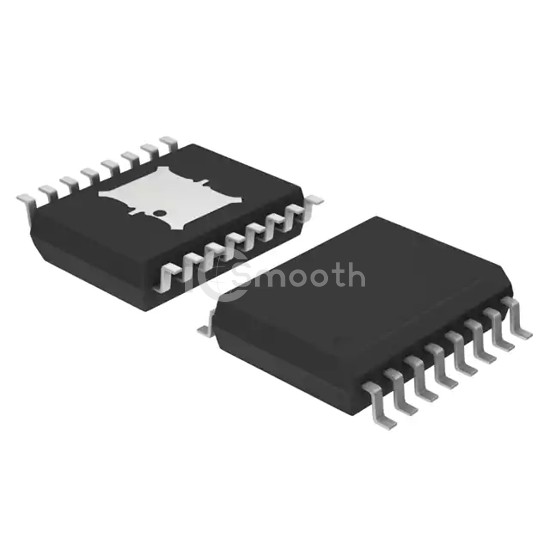

NCV8501PDW100R2

IC REG LINEAR 10V 150MA 16SOIC

NCV8501PDW100R2 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 10V 150MA 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 19 mA.

Datasheet Request a Quote

In Stock: 5,970

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	10V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	19 mA
PSRR	-
Control Features	Enable, Reset
Protection Features	Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package	16-SOIC
