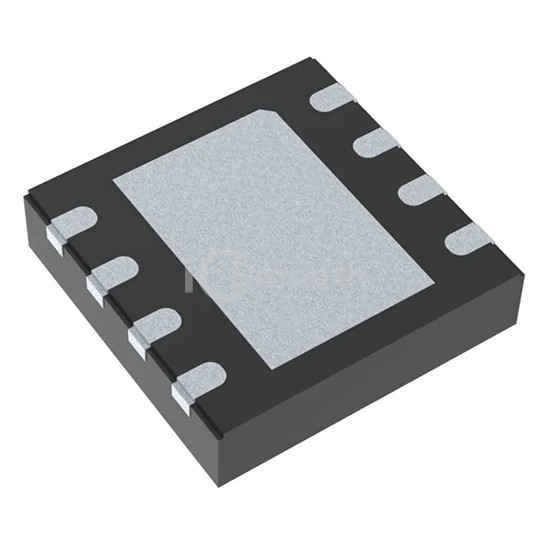

Name: NCV8164AML330TCG
Brand: onsemi
SKU: NCV8164AML330TCG
Price: 1.59 USD
Availability: InStock

REF: NCV8164AML330TCG onsemi

NCV8164AML330TCG

IC REG LINEAR 3.3V 300MA 8DFNW

NCV8164AML330TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3.3V 300MA 8DFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, current - output 300mA.

Datasheet Request a Quote

In Stock: 9,984

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.19V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	-
PSRR	83dB ~ 61dB (100Hz ~ 100kHz)
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-DFNW (3x3)
