Name: NCV8164AML300TCG
Brand: onsemi
SKU: NCV8164AML300TCG
Price: 0.63 USD
Availability: InStock

REF: NCV8164AML300TCG onsemi

NCV8164AML300TCG

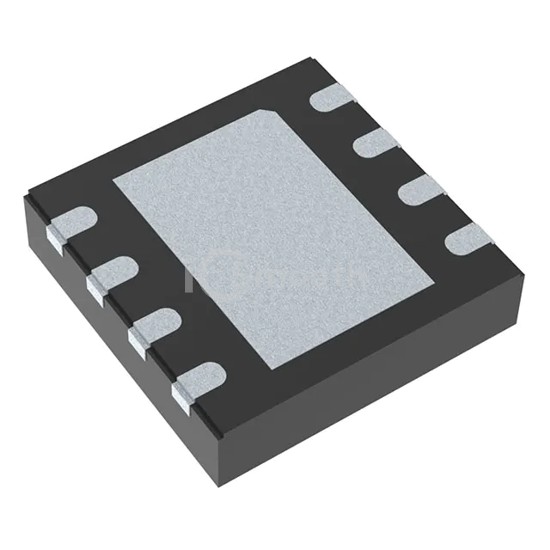

IC REG LINEAR 3V 300MA 8DFNW

NCV8164AML300TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3V 300MA 8DFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, current - output 300mA.

Datasheet Request a Quote

In Stock: 1,037

Tiered Pricing USD

1+ $0.6300 —

10+ $0.4490 -29%

25+ $0.4024 -36%

100+ $0.3513 -44%

250+ $0.3270 -48%

500+ $0.3123 -50%

1,000+ $0.3002 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.197V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	-
PSRR	83dB ~ 61dB (100Hz ~ 100kHz)
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-DFNW (3x3)
