NCV7726DQAR2G

In Stock: 5,508

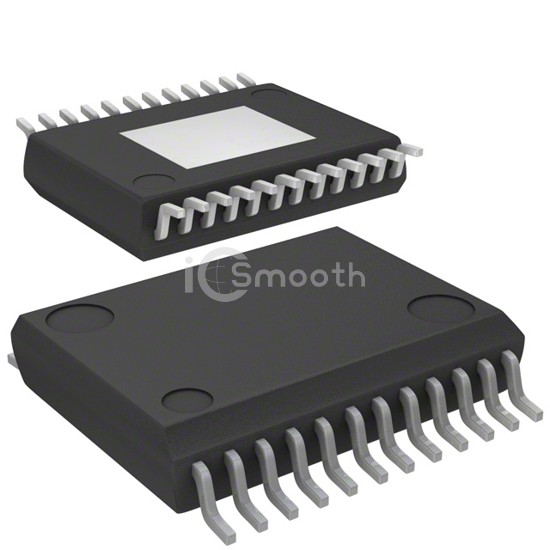

NCV7726DQAR2G - onsemi - PMIC - Full, Half-Bridge Drivers
REF: NCV7726DQAR2G onsemi
NCV7726DQAR2G

onsemi

AUTOMOTIVE DRIVER

NCV7726DQAR2G is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. AUTOMOTIVE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.15V ~ 5.25V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 5,508

Tiered Pricing USD
1+ $5.4600 —
10+ $4.1750 -24%
25+ $3.8536 -29%
100+ $3.4995 -36%
250+ $3.3307 -39%
500+ $3.2290 -41%
1,000+ $3.1453 -42% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (12)
ApplicationsDC Motors, General Purpose
InterfaceLogic, SPI
Load TypeInductive
TechnologyNMOS
Rds On (Typ)850mOhm LS, 850mOhm HS
Current - Output / Channel500mA
Current - Peak Output1.1A
Voltage - Supply3.15V ~ 5.25V
Voltage - Load5.5V ~ 32V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesCharge Pump
Fault ProtectionOver Current, Over Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package24-SSOP-EP
