Name: NCV7520MWTXG
Brand: onsemi
SKU: NCV7520MWTXG
Price: 4.01 USD
Availability: InStock

REF: NCV7520MWTXG onsemi

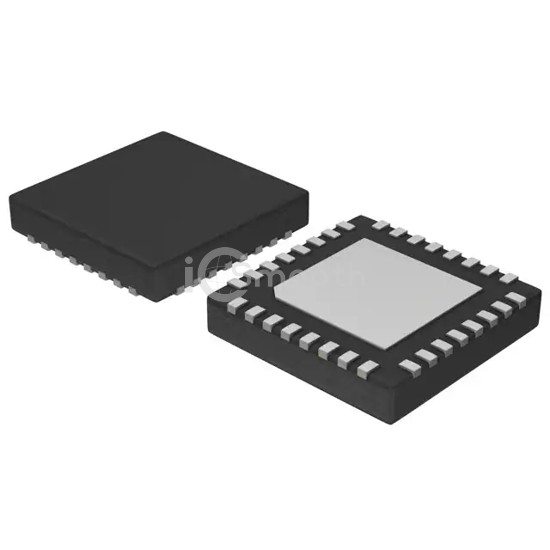

NCV7520MWTXG

IC GATE DRVR LOW-SIDE 32QFN

NCV7520MWTXG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,293

Tiered Pricing USD

1+ $4.0100 —

10+ $3.0290 -24%

25+ $2.7852 -31%

100+ $2.5163 -37%

250+ $2.3882 -40%

500+ $2.3110 -42%

1,000+ $2.2474 -44%

2,500+ $2.1803 -46% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	6
Gate Type	N-Channel MOSFET
Voltage - Supply	4.75V ~ 5.25V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	-

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	277ns (Max), 277ns (Max)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)
