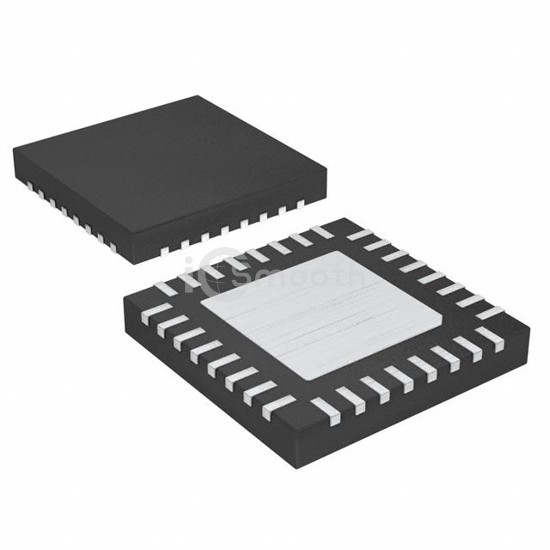

Name: NCV70514MW003G
Brand: onsemi
SKU: NCV70514MW003G
Price: 5.12 USD
Availability: InStock

REF: NCV70514MW003G onsemi

NCV70514MW003G

IC MTR DRVR BIPOLAR 6-29V 32QFN

NCV70514MW003G is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTR DRVR BIPOLAR 6-29V 32QFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -45°C ~ 175°C (TJ), voltage - supply 6V ~ 29V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,554

Tiered Pricing USD

1+ $5.1200 —

10+ $3.3370 -35%

25+ $2.8728 -44%

100+ $2.3481 -54%

250+ $2.0905 -59%

500+ $1.9320 -62%

1,000+ $1.8353 -64% BEST

Specifications

16 parameters

Product Status	Obsolete
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI, Step/Direction
Technology	Power MOSFET
Step Resolution	1 ~ 1/32

Applications	General Purpose
Current - Output	-
Voltage - Supply	6V ~ 29V
Voltage - Load	6V ~ 29V
Operating Temperature	-45°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFNW (5x5)
