Name: NCV59749MNADJTBG
Brand: onsemi
SKU: NCV59749MNADJTBG
Price: 1.54 USD
Availability: InStock

REF: NCV59749MNADJTBG onsemi

NCV59749MNADJTBG

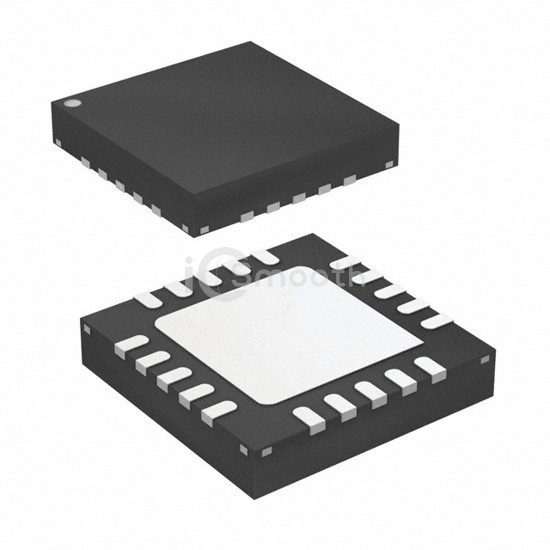

IC REG LINEAR POS ADJ 3A 20QFN

NCV59749MNADJTBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 3A 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-VQFN Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 7,223

Tiered Pricing USD

1+ $1.5400 —

10+ $1.1250 -27%

25+ $1.0216 -34%

100+ $0.9075 -41%

250+ $0.8531 -45%

500+ $0.8203 -47%

1,000+ $0.7933 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.6V
Voltage Dropout (Max)	0.28V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	-
PSRR	60dB ~ 30dB (1kHz ~ 300kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Current Limit, Thermal Shutdown
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-VQFN Exposed Pad
Supplier Device Package	20-QFN (5x5)
