Name: NCV59748MN1ADJTBG
Brand: onsemi
SKU: NCV59748MN1ADJTBG
Availability: InStock

REF: NCV59748MN1ADJTBG onsemi

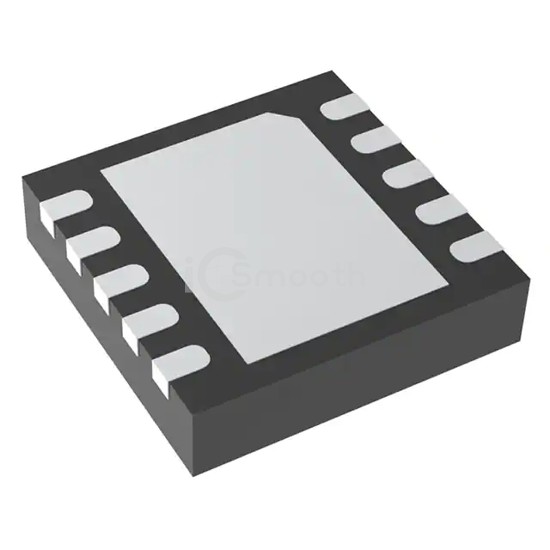

NCV59748MN1ADJTBG

IC REG LINEAR POS ADJ 1.5A 10DFN

NCV59748MN1ADJTBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 1.5A 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 10-VFDFN Exposed Pad, current - output 1.5A.

Datasheet Request a Quote

In Stock: 1,661

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.6V
Voltage Dropout (Max)	0.165V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	-
PSRR	75dB ~ 30dB (1kHz ~ 300kHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
