Name: NCV59748ML075TBG
Brand: onsemi
SKU: NCV59748ML075TBG
Price: 1.32 USD
Availability: InStock

REF: NCV59748ML075TBG onsemi

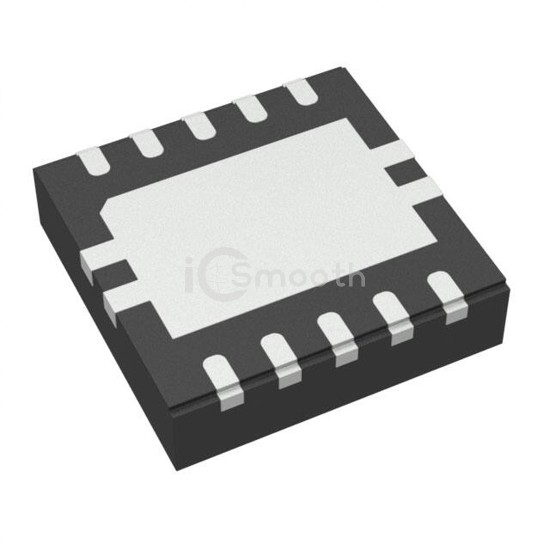

NCV59748ML075TBG

IC REG LINEAR 0.75V 1.5A 10DFNW

NCV59748ML075TBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 0.75V 1.5A 10DFNW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 10-VFDFN Exposed Pad, current - output 1.5A.

Request a Quote

In Stock: 9,095

Tiered Pricing USD

1+ $1.3200 —

10+ $0.9610 -27%

25+ $0.8704 -34%

100+ $0.7711 -42%

250+ $0.7237 -45%

500+ $0.6951 -47%

1,000+ $0.6716 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.75V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.6V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	-
PSRR	75dB ~ 30dB (1kHz ~ 300kHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFNW (3x3)
