Name: NCV59745AMW100TAG
Brand: onsemi
SKU: NCV59745AMW100TAG
Price: 2.22 USD
Availability: InStock

REF: NCV59745AMW100TAG onsemi

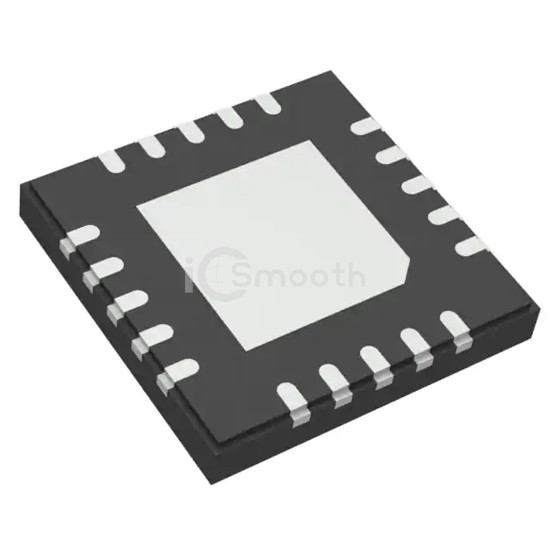

NCV59745AMW100TAG

IC REG LINEAR 1V 3A 20QFNW

NCV59745AMW100TAG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1V 3A 20QFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), package / case 20-VFQFN Exposed Pad, current - output 3A.

Request a Quote

In Stock: 4,991

Tiered Pricing USD

1+ $2.2200 —

10+ $1.6450 -26%

25+ $1.5004 -32%

100+ $1.3417 -40%

250+ $1.2661 -43%

500+ $1.2205 -45%

1,000+ $1.1830 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.4V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	-
PSRR	75dB ~ 18dB (1kHz ~ 3MHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFNW (4x4)
