NCV59744MNADJTBG

In Stock: 6,921

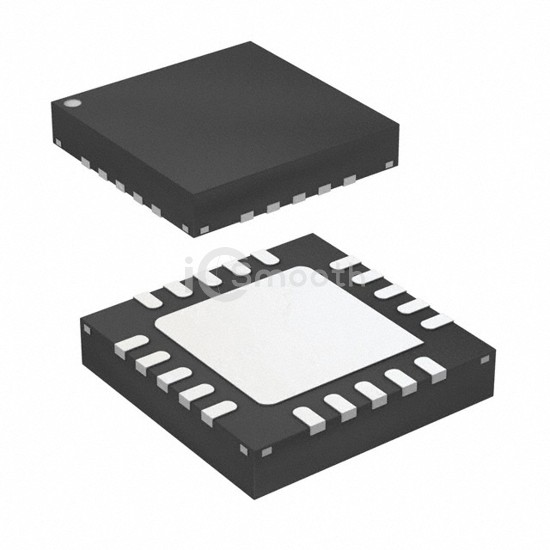

NCV59744MNADJTBG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCV59744MNADJTBG onsemi
NCV59744MNADJTBG

onsemi

IC REG LINEAR POS ADJ 3A 20QFN

NCV59744MNADJTBG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 3A 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-VQFN Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 6,921

Tiered Pricing USD
1+ $1.7200 —
10+ $1.2630 -27%
25+ $1.1480 -33%
100+ $1.0218 -41%
250+ $0.9617 -44%
500+ $0.9254 -46%
1,000+ $0.8956 -48% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)3.6V
Voltage Dropout (Max)0.195V @ 3A
Current - Output3A
Current - Quiescent (Iq)2 mA
Current - Supply (Max)-
PSRR72dB ~ 50dB (1kHz ~ 1MHz)
Control FeaturesEnable, Power Good, Soft Start
Protection FeaturesOver Current, Thermal Shutdown
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-VQFN Exposed Pad
Supplier Device Package20-QFN (5x5)
