NCV565D2TG

In Stock: 59

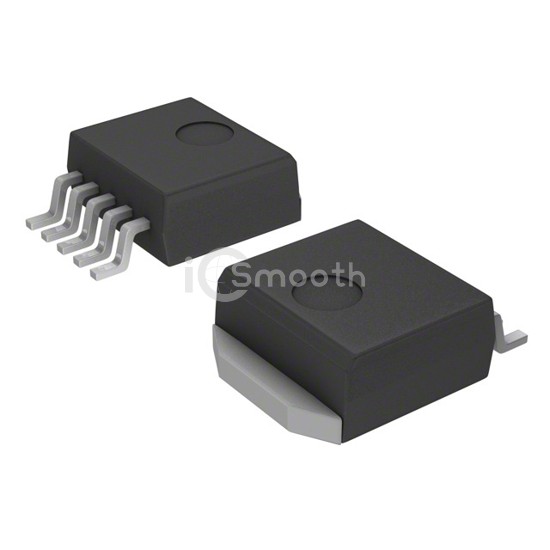

NCV565D2TG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCV565D2TG onsemi
NCV565D2TG

onsemi

IC REG LIN POS ADJ 1.5A D2PAK-5

NCV565D2TG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 1.5A D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 1.5A.

Datasheet Request a Quote

In Stock: 59

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)9V
Voltage - Output (Min/Fixed)0.9V
Voltage - Output (Max)7.7V
Voltage Dropout (Max)1.3V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)3 mA
Current - Supply (Max)-
PSRR85dB ~ 75db (120Hz ~ 1kHz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackageD2PAK-5
