Name: NCV47821PAAJR2G
Brand: onsemi
SKU: NCV47821PAAJR2G
Price: 3.53 USD
Availability: InStock

REF: NCV47821PAAJR2G onsemi

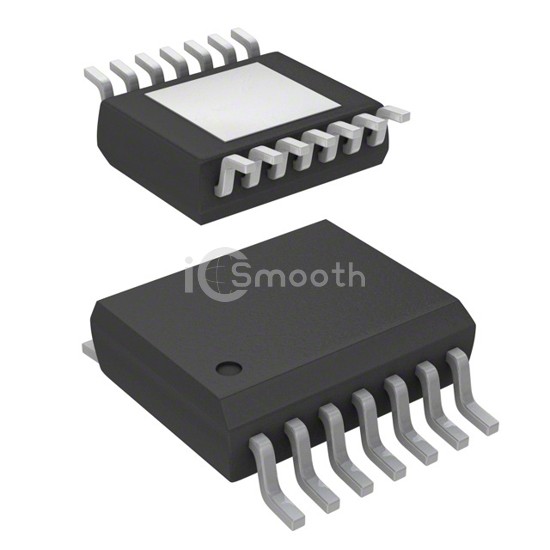

NCV47821PAAJR2G

IC REG LIN POS ADJ 200MA 14TSSOP

NCV47821PAAJR2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 200MA 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 1,483

Tiered Pricing USD

1+ $3.5300 —

10+ $2.2550 -36%

25+ $1.9228 -46%

100+ $1.5473 -56%

250+ $1.3628 -61%

500+ $1.2493 -65%

1,000+ $1.1543 -67% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	2
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.5V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	1 mA
Current - Supply (Max)	25 mA
PSRR	75dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-TSSOP-EP
