Name: NCV47721PAAJR2G
Brand: onsemi
SKU: NCV47721PAAJR2G
Price: 1.59 USD
Availability: InStock

REF: NCV47721PAAJR2G onsemi

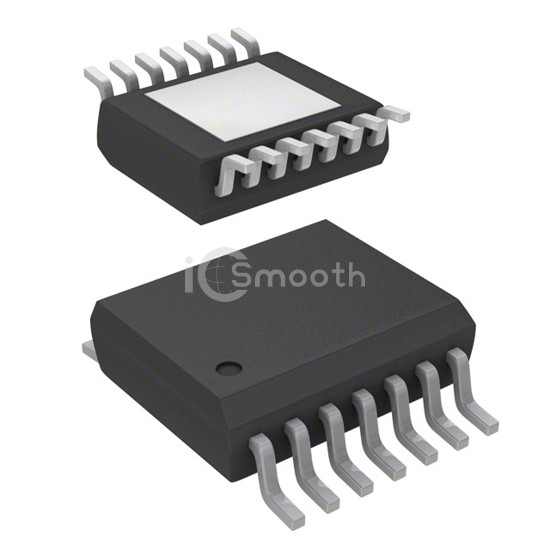

NCV47721PAAJR2G

IC REG LIN POS ADJ 200MA 14TSSOP

NCV47721PAAJR2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 200MA 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 15 mA.

Datasheet Request a Quote

In Stock: 3,328

Tiered Pricing USD

1+ $1.5900 —

10+ $1.1660 -27%

25+ $1.0588 -33%

100+ $0.9413 -41%

250+ $0.8852 -44%

500+ $0.8513 -46%

1,000+ $0.8235 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.5V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	1 mA
Current - Supply (Max)	15 mA
PSRR	80dB (100Hz)
Control Features	Enable, Error Flag
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-TSSOP-EP
