Name: NCV47411PAAJR2G
Brand: onsemi
SKU: NCV47411PAAJR2G
Price: 3.20 USD
Availability: InStock

REF: NCV47411PAAJR2G onsemi

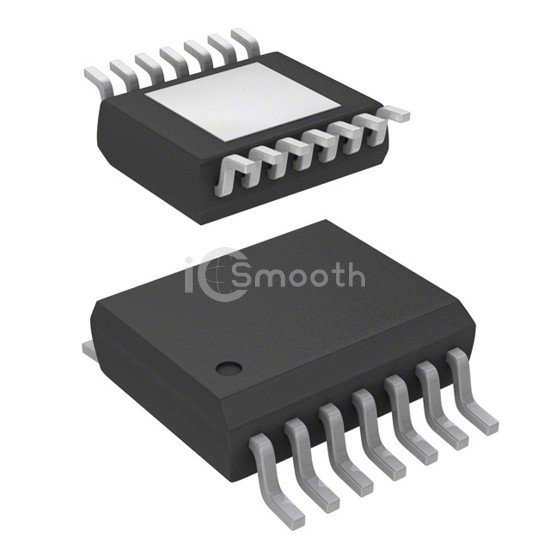

NCV47411PAAJR2G

IC REG LINEAR POS ADJ 14TSSOP

NCV47411PAAJR2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 50 mA.

Datasheet Request a Quote

In Stock: 9,944

Tiered Pricing USD

1+ $3.2000 —

10+ $2.0350 -36%

25+ $1.7312 -46%

100+ $1.3874 -57%

250+ $1.2186 -62%

500+ $1.1147 -65%

1,000+ $1.0277 -68% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	2
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.55V @ 100mA, 0.55V @ 100mA
Current - Output	100mA, 100mA

Current - Quiescent (Iq)	370 µA
Current - Supply (Max)	50 mA
PSRR	75dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-TSSOP-EP
