NCV4276DSADJG

In Stock: 2,158

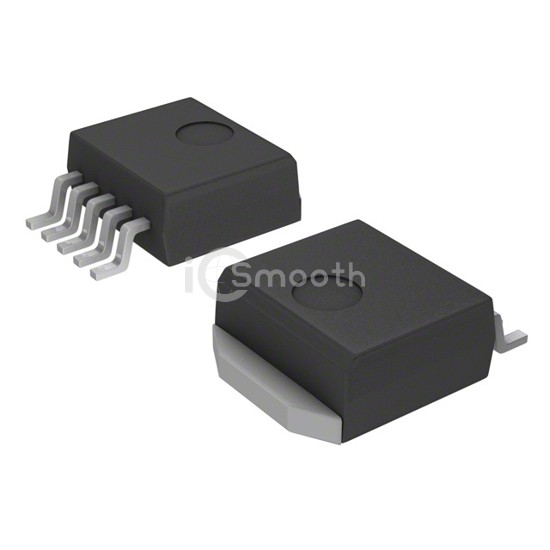

NCV4276DSADJG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCV4276DSADJG onsemi
NCV4276DSADJG

onsemi

IC REG LIN POS ADJ 400MA D2PAK-5

NCV4276DSADJG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 400MA D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 35 mA.

Datasheet Request a Quote

In Stock: 2,158

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)45V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)20V
Voltage Dropout (Max)0.5V @ 250mA
Current - Output400mA
Current - Quiescent (Iq)220 µA
Current - Supply (Max)35 mA
PSRR60dB (100Hz)
Control Features-
Protection FeaturesOver Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackageD2PAK-5
