Name: NCS20282FCTTAG
Brand: onsemi
SKU: NCS20282FCTTAG
Price: 0.85 USD
Availability: InStock

REF: NCS20282FCTTAG onsemi

NCS20282FCTTAG

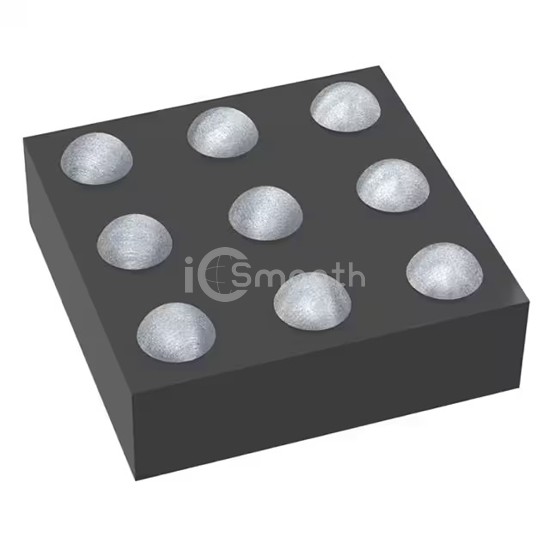

IC OPAMP GP 2 CIRCUIT 9WLCSP

NCS20282FCTTAG is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by onsemi. IC OPAMP GP 2 CIRCUIT 9WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 9-XFBGA, WLCSP, current - supply 850µA (x2 Channels).

Datasheet Request a Quote

In Stock: 9,170

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	5V/µs
Gain Bandwidth Product	7 MHz
-3db Bandwidth	-
Current - Input Bias	50 pA
Voltage - Input Offset	300 mV

Current - Supply	850µA (x2 Channels)
Current - Output / Channel	10 mA
Voltage - Supply Span (Min)	2.5 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	9-XFBGA, WLCSP
Supplier Device Package	9-WLCSP (1.02x1.02)
