Name: NCP81233MNTXG
Brand: onsemi
SKU: NCP81233MNTXG
Price: 5.48 USD
Availability: InStock

REF: NCP81233MNTXG onsemi

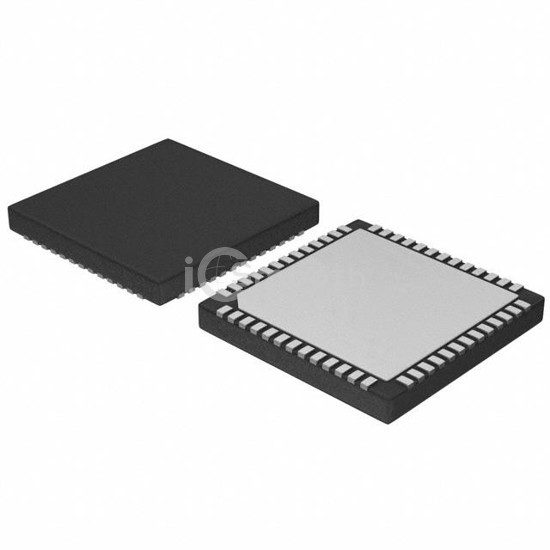

NCP81233MNTXG

IC REG CNTRL BCK/BST I2C 52QFN

NCP81233MNTXG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CNTRL BCK/BST I2C 52QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 20V, package / case 52-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,784

Tiered Pricing USD

1+ $5.4800 —

10+ $4.1900 -24%

25+ $3.8668 -29%

100+ $3.5118 -36%

250+ $3.3425 -39%

500+ $3.2405 -41%

1,000+ $3.1565 -42% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM Signal
Function	Step-Up, Step-Down
Output Configuration	Positive
Topology	Buck, Boost
Number of Outputs	1
Output Phases	4
Voltage - Supply (Vcc/Vdd)	4.5V ~ 20V
Frequency - Switching	200kHz ~ 1.2MHz

Duty Cycle (Max)	-
Synchronous Rectifier	-
Clock Sync	Yes
Serial Interfaces	I²C
Control Features	Current Limit, Enable, Frequency Control, On Time Control, Ramp, Soft Start
Operating Temperature	-40°C ~ 100°C (TA)
Mounting Type	Surface Mount
Package / Case	52-VFQFN Exposed Pad
Supplier Device Package	52-QFN (6x6)
