NCP81156MNTBG

In Stock: 8,968

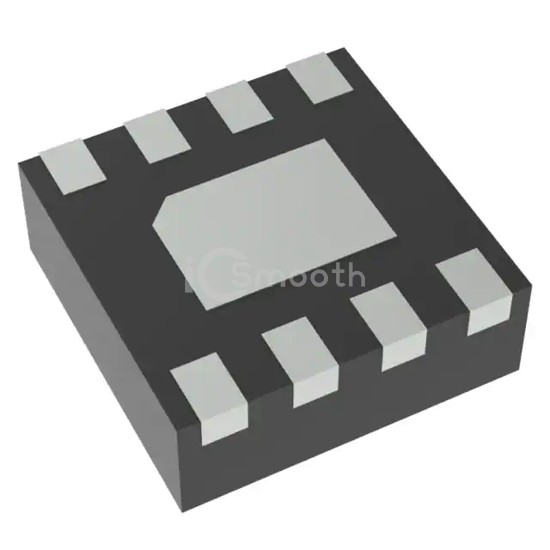

NCP81156MNTBG - onsemi - PMIC - Gate Drivers
REF: NCP81156MNTBG onsemi
NCP81156MNTBG

onsemi

IC GATE DRV HALFBRDG/LO-SID 8DFN

NCP81156MNTBG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRV HALFBRDG/LO-SID 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 13.2V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,968

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge, Low-Side
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 13.2V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)16ns, 11ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x2)
