NCP81063MNTXG

In Stock: 17,378

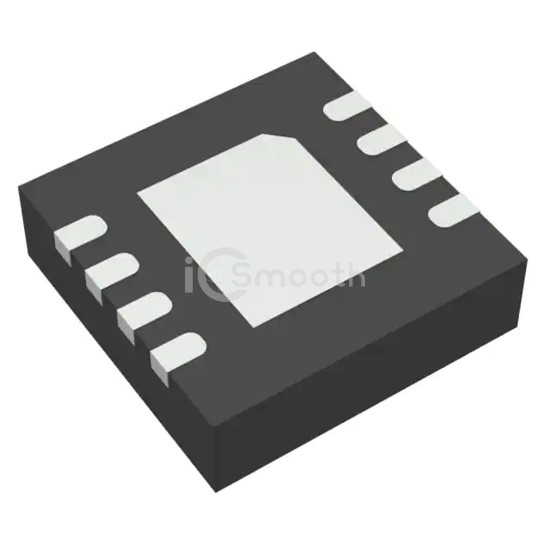

NCP81063MNTXG - onsemi - PMIC - Gate Drivers
REF: NCP81063MNTXG onsemi
NCP81063MNTXG

onsemi

IC GATE DRV HI-SIDE/LO-SIDE 8DFN

NCP81063MNTXG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRV HI-SIDE/LO-SIDE 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 13.2V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 17,378

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSynchronous
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 13.2V
Logic Voltage - VIL, VIH0.7V, 3.4V
Current - Peak Output (Source, Sink)2.5A, 1.6A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)30ns, 27ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
