NCP706MX21TAG

In Stock: 2,661,590

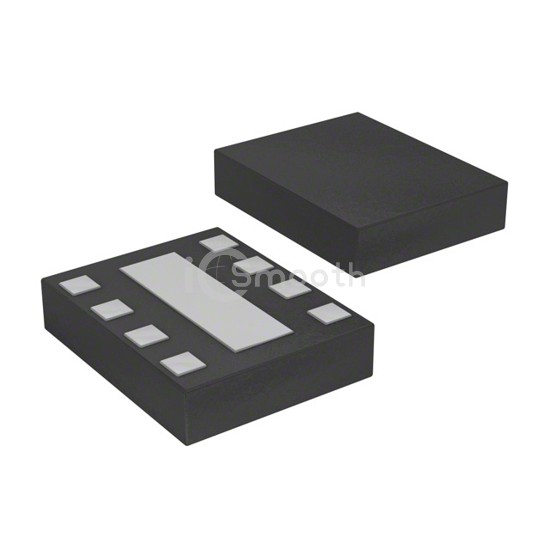

NCP706MX21TAG - onsemi - PMIC - Voltage Regulators - Linear
REF: NCP706MX21TAG onsemi
NCP706MX21TAG

onsemi

IC REG LINEAR 2.1V 1A 8XDFN

NCP706MX21TAG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 2.1V 1A 8XDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-XFDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 2,661,590

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.1V
Voltage - Output (Max)-
Voltage Dropout (Max)0.3V @ 1A
Current - Output1A
Current - Quiescent (Iq)230 µA
Current - Supply (Max)-
PSRR60dB ~ 40dB (100Hz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-XFDFN Exposed Pad
Supplier Device Package8-XDFN (1.6x1.2)
